Trims

Available Sizes

1 1/2 X 1 1/2 Single Angle

• 10'-6" Length, 3" Girth, 29 Gauge.
• 12'-0" Length, 3" Girth, 29 Gauge.
• 14'-0" Length, 3 Girth, 29 Gauge.

1 1/2 X 1 Double Angle

• 10'-6" Length, 3" Girth, 29 Gauge.

2 X 2 Outside Angle

• 10'- 2" Length,  5" Girth.

2 X 2 Inside Angle

• 10'- 2" Length and 5" Girth.
• 10'-6" Length, 4" Girth , 29 Gauge.

3 X 3 Outside Angle

• 10' - 2" Length.
• 7" Girth.

3 X 3 Inside Angle

• 10' - 2" Length.
• 7" Girth.

Available Sizes

BT-20 Base Trim

• 20' Length, 7 7/8" Girth, 20 Gauge Material, Burnished Slate only.

Base Angle Corner

• Vinyl Material, Burnished Slate Only.

Base Trim

• 10'-2" Length, 6 1/8" Girth.
• Use with sheeting notch in concrete.
• 10'-6" Length, 5 3/4" Girth, 29 Gauge.

Base Trim without Sheeting

• 10' - 2" Length, 6 3/4" Girth.
• Use without sheeting notch in concrete.

FW-120 Panel Base Trim without

Sheeting Notch

• 10'-2" or 20'-2" Lengths, 9 3/8" Girth.

Available Sizes

Outside Corner Trim- PBR/PBA Panel

• 10'-2" Length, 12 5/8" Girth.
• 12'-0" Length, 12 5/8" Girth.
• 14'-0" Length, 12 5/8" Girth.
• 16'-0" Length, 12 5/8" Girth.
• 18'-0" Length, 12 5/8" Girth.
• 20'-2" Length, 12 5/8" Girth.

Outside Corner Trim- PBU Panel

• 10'-2" Length, 11 3/8" Girth.
• 12'-0" Length, 11 3/8" Girth.
• 14'-0" Length, 11 3/8" Girth.
• 16'-0" Length, 11 3/8" Girth.
• 18'-0" Length, 11 3/8" Girth.
• 20'-2" Length, 11 3/8" Girth.

Inside Corner Trim- PBR Panel

• 10'-2" Length, 15" Girth.
• 12'-0" Length, 15" Girth.
• 14'-0" Length, 15" Girth.
• 16'-0" Length, 15" Girth.
• 18'-0" Length, 15" Girth.
• 20'-2" Length, 15" Girth.

Inside Corner Trim- PBU Panel

• 10'-2" Length, 10 5/8" Girth.
• 12'-0" Length, 10 5/8" Girth.
• 14'-0" Length, 10 5/8" Girth.
• 16'-0" Length, 10 5/8" Girth.
• 18'-0" Length, 10 5/8" Girth.
• 20'-2" Length, 10 5/8" Girth.

Inside Corner Trim

• 10'-2" or 20'-2" Length, 8" Girth.

Outside Corner Trim

• 10'-2" or 20'-2" Length, 8" Girth.

Available Sizes

* Roll Form Downspout- Straight

• 10'-6" or 14'-6" Length, 17 9/16" Girth, 26 Gauge Only.

* Roll Form 72 Degree Kick out

• 1'-4" Length, 17 9/16" Girth, 26 Gauge Only.

* Roll Form 45 Degree Offset

• 11" Length, 17 9/16" Girth. 26 Gauge Only.

*Roll Form 5 Degree Offset

• 1'-7 1/2" Length, 17 9/16" Girth, 26 Gauge Only.

Downspout Straight

• 10'-2, 12'-0", 14'-0", 16'-0", 20'-2" Length, 16 7/8" Girth.
• 10'-2, 12'-0", 14'-0", 16'-0", 20'-2" Length, 16 3/4" Girth.

Downspout with 45 Degree Elbow

• 10'-2, 12'-0", 14'-0", 16'-0", 20'-2" Length, 16 7/8" Girth.
• 10'-2, 12'-0", 14'-0", 16'-0", 20'-2" Length, 16 3/4" Girth.

Downspout Elbow

• 1' 2 1/2" or 1'-2", 16 7/8" Girth.

Downspout Offset

• 1' 2 1/2", 16 7/8" Girth.

Offset Downspout

• 6"-5'-0" or 5'-1"-10'-0" Length, 16 3/4" Girth.

Pig Spout Elbow

• 8" Length, 16 3/4" Girth.

Scupper

• 4" Length, 8" Girth.

Box Downspout-Straight

• 10'-6" or 14'-0" Length, 16 3/4" Girth, 29 Gauge Only.

Box Downspout with 45 Degree Elbow

• 10'-6" or 14'-0" Length, 29 Gauge.

Box Downspout Elbow

• 7" Length, 16 3/4" Girth, 29 Gauge Only.

Box Downspout Offset

• 8" Length, 16 3/4" Girth. 29 Gauge Only.

*Stock Colors: Polar White, Light Stone, Saddle Tan, Ash Gray, Burnished Slate, Fern Green, Rustic Red, Desert Sand, KoKo Brown, and Charcoal Gray .

Available Sizes

Sculptured High Side Eave Trim

• 10'-2" or 20'-2" Length, 20 3/4" Girth.

Eave Trim

• 10'-2" or 20'-2" Length, 9 5/8" Girth.
• 10'-2" or 20'-2" Length, 8 5/8" Girth, DIM "A" 4".
• 10'-2" or 20'-2" Length, 7 5/8" Girth, DIM "A" 3".
• 10'-6" or 12'-6" Length, 10 1/2" Girth, 29 Gauge Only.
• 10'-6" Length, 9 7/8" Girth, 29 Gauge Only.
• 10'-6" Length, 6 5/8" Girth, 29 Gauge Only.

Eave Trim with Extended Drip Edge

• 10'-2" Length, 9 5/8" Girth.
• 10'-2" Length, 5" Girth.
• 10'-2" Length, 5 3/8" Girth.
• Use with roof slopes up to 4:12.

Eave to Fascia Transition

• 10'-2" or 20'-2" Length, 11' Girth.

Roof to Fascia/Sill Sash

• 10'-2" or 20'-2" Length, 9' Girth.

Parapet High Side Eave Flash-Fixed

• 10'-2" or 20'-2" Length, 9" Girth, DIM "A" 4 1/2."
• 10'-2" or 20'-2" Length, 10" Girth, DIM "A" 5 1/2".

Parapet High Side Eave Flash-Floating

• 10'-2" or 20'-2" Length, 13" Girth.

FW-120 Panel Extended Eave Trim

• 10'-2" or 20'-2" Length, 12 1/8" Girth.

26 Gauge Gutter Ends

Gutter Strap

• 1'-0" Length, 3" Girth, 26 or 24 Gauge.
• 10" Length, 2" Girth.

Scupper

• 4" Length, 8" Girth.

Downspout Strap

• 1" Length, 10" Girth. 26 Gauge.
• 1" Length, 10" Girth. 24 Gauge.

Peak Box

• Box Rake Peak Box PBR or PBU.
• Sculptured Rake Peak Box PBR or PBU.
• Style Rake Peak Box PBR.

Rake Ends

• Box Rake Ends PBR or PBU.
• Sculptured Rake Ends PBR or PBU.
• Style Rake Ends PBR.

Cap Trim

• 10'-2" Length, 5 5/8" Girth, DIM "A" 1 1/8".
• 10'-2" Length, 6 1/8" Girth, DIM "A" 1 5/8".
• 10'-2" Length, 6 1/4" Girth, DIM "A" 1 3/4".
• 10'-2" Length, 6 1/2" Girth, DIM "A" 2".
• 10'-2" Length, 6 5/8" Girth, DIM "A" 2 1/8."

Ridge End Cap-Floating

Ridge End Cap-Vent

End Plate

• 2'-0" Length, 6 1/8" or 8 1/8" Girth, 29 Gauge Only.

Available Sizes

PBR Sculptured Eave Gutter

• 10'-2" or 20'-2" Length, 23" Girth, 1/2 - 4:12 Roof Slope, DIM "A" 6 1/2".
• 10'-2" or 20'-2" Length, 23" Girth,  4 1/8 - 6:12 Roof Slope, DIM "A" 7".

PBR Sculptured Hang-On Gutter

• 10'-2" or 20'-2" Length, 20 1/4 " Girth, 1/2 - 4:12 Roof Slope, DIM "A" 6 1/2".
• 10'-2" or 20'-2" Length, 20 3/4" Girth, 4 1/8 - 6:12 Roof Slope, DIM "A" 7".

PBU Sculptured Eave Gutter

• 10'-2" or 20'-2" Length, 23 1/2 " Girth, 1/2 - 4:12 Roof Slope, DIM "A" 7".
• 10'-2" or 20'-2" Length, 24" Girth, 4 1/8 - 6:12 Roof Slope, DIM "A" 7 1/2".

PBU Sculptured Hang-On Gutter

• 10'-2" or 20'-2" Length, 20 3/4" Girth, 1/2 - 4:12 Roof Slope, DIM "A" 7".
• 10'-2" or 20'-2" Length, 21 1/4" Girth, 4 1/8 - 6:12 Roof Slope, DIM "A" 7 1/2".

Box Hang-On Gutter

• 10'-2" or 20'-2" Length, 17" Girth, 1/2 - 4:12 Roof Slope, DIM "A" 4 1/2".
• 10'-2" or 20'-2" Length, 17" Girth, 1/2 - 4:12 Roof Slope, DIM "A" 4 1/4".
• 10'-2" or 20'-2" Length, 16 3/4" Girth, 1/2 - 4:12 Roof Slope, DIM "A" 4".
• 20'-2" Length, 17 1/4" Girth, 4 1/16 - 6:12 Roof Slope, DIM "A" 4 3/4".
• 10'-2" or 20'-2" Length, 17 3/8" Girth, 4 1/16 - 6:12 Roof Slope, DIM "A" 4 5/8".
• 10'-2" or 20'-2" Length, 17" Girth, 4 1/16 - 6:12 Roof Slope, DIM "A" 4 1/4".
• 10'-2"Length, 17 1/4" Girth, 4 1/16 - 6:12 Roof Slope, DIM "A" 4 3/4".

Box Eave Gutter

• 10'-2" or 20'-2" Length, 20 1/4" Girth, 1/2 - 4:12 Roof Slope, DIM "A" 4 1/2".
• 10'-2" or 20'-2" Length, 20 1/4" Girth, 1/2 - 4:12 Roof Slope, DIM "A" 4 1/4".
• 10'-2" or 20'-2" Length, 20 1/2" Girth, 4 1/16 - 6:12 Roof Slope, DIM "A" 4 3/4".
• 10'-2" or 20'-2" Length, 20 5/8" Girth, 4 1/16 - 6:12 Roof Slope, DIM "A" 4 5/8".
•  10'-2" or 20'-2" Length, 20" Girth, 1/5 - 4:12 Roof Slope, DIM "A" 4".
• 10'-2" or 20'-2" Length, 20 1/4" Girth, 4 1/16 - 6:12 Roof Slope, DIM "A" 4 1/4".

Box Gutter

• 10'-2" or 20'-2", 24" Girth
• 10'-6' or 16'-0", 19" Girth, 29 Gauge.

Box Gutter with Drip Edge

• 10'-2", 27" Girth.
• 4:12 maximum roof slope.

Residential Gutter

• 12 9/16" Length, 24, 26, or 29 gauge.
• 10'-6", 19" Girth. 26 Gauge.

Available Sizes

Jamb Trim-PBR Panel

• 7'3", 10'-2", 12'-2", or 14'-2" Length, 5" Girth.

Jamb Trim-PBU Panel

• 7'3", 10'-2", 12'-2", or 14'-2" Length, 4 3/4" Girth.

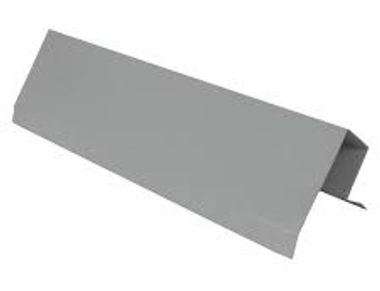

Jamb Trim

• 7'-3", 10'-6", 12'-0", or 14'-0" Length, 5" Girth, 29 Gauge Only.

Drip Trim-PBR Panel

• 10'-2" or 20'-2" Length, 7 5/8" Girth.

Head Trim PBR Panels

• 3'-6", 7'-1", 10'-4", 12"-4", 14'-4" Length, 5 5/8" Girth.
• 3'-6", 7'-1", 10'-4", 12"-4", 14'-4" Length, 6 3/8" Girth.

Head Trim PBU Panels

• 3'-6", 10'-4", 14'-4" Length, 5" Girth.

Head Trim

• 10'-6" or 14'-0" Length, 4 1/4" Girth, 29 Gauge Only.

Jamb or Head Cap

• 10'-2" Length, 13 1/8" Girth.

Door Header

• 3'-6", 10'-6", 12"-0", or 14'-0" Length, 5" Girth, 29 Gauge Only.

J-Trim

• 10'-6" or 16'-0" Length, 4 1/8" Girth, 29 Gauge Only.

Available Sizes

Parapet High Eave Trim

• 10'-2" Length, 14" Girt.

Parapet High Eave Trim

• 10'-2" or 20'-2" Length, 12" Girth.

Parapet Rake-PBR Panel

• 10'-2" or 20'-2" Length, 14" Girth.

Parapet Rake- PBU Panel

• 10'-2" or 20'-2" Length, 14" Girth.

Available Sizes

PBU Residential Rake

• DIM "A" 3 3/16", Roof Slope 3-4:12, 8 11/16" Girth, 29 or 26  Gauge.
• DIM "A" 3 1/16", Roof Slope 5-6:12, 8 9/16" Girth, 29 or 26  Gauge.
• DIM "A" 2 15/16", Roof Slope7:12, 8 7/16" Girth, 29 or 26  Gauge.
• DIM "A" 2 13/16", Roof Slope 8-49:12, 8 5/16" Girth, 29 or 26  Gauge.
• DIM "A" 2 11/16", Roof Slope 10:12, 8 3/16" Girth, 29 or 26  Gauge.

PBR Residential Rake

• DIM "A" 3 11/16", Roof Slope 3-4:12, 10 13/16" Girth, 29 or 26  Gauge.
• DIM "A" 3 9/16", Roof Slope 5-6:12, 10 11/16" Girth, 29 or 26  Gauge.
• DIM "A" 3 7/16", Roof Slope 7:12, 10 9/16" Girth, 29 or 26  Gauge.
• DIM "A" 3 5/16", Roof Slope 8-9:12, 10 7/16" Girth, 29 Gauge.

Sculptured- PBR Panel

• 10'-2" or 20'-2" Length, 20 1/4" Girth.

Sculptured- PBU Panel

• 10'-2" or 20'-2" Length, 20 1/4" Girth.

Box Rake- PBR Panel

• 10'-2" or 20'-2"Length, 20 1/4" Girth.

Box Rake- PBU Panel

• 10'-2" or 20'-2" Length, 20 1/4" Girth.

Box Rake

• DIM "A" 4",DIM "B" 3", 10'-2" or 20'-2" Length, 8 5/8" Girth.
• DIM "A" 5",DIM "B" 3", 10'-2" or 20'-2" Length, 9 5/8" Girth.
• DIM "A" 5",DIM "B" 4", 10'-2" or 20'-2" Length, 10 5/8" Girth.
• DIM "A" 5",DIM "B" 5", 10'-2" or 20'-2" Length, 11 5/8" Girth.

Parapet Rake Flash

• 10'-2" or 20'-2" Length, 9 1/4" Girth.

Rake Slide

• 10'-2" Length, 2 3/4" Girth.

Available Sizes

Die-Formed Ridge Cap (PBR or PBU)

• 2'-6" or 3'-0" Length, 26 Gauge.

Available Sizes

Flat Ridge Cap

• 10'-2" or 20'-2", 24 Girth.

Masonry Flash

• 10'-2" or 20'-2", 11 Girth.

Ridge Cap

• 10'6-" Length, 15" Girth, 29 Gauge.

Ridge Flash

• 10'-6", 12 3/4" Girth, 29 Gauge.

Peak Trim

• 10'-6" Length, 11 5/8" Girth, 29 Gauge.

Available Sizes

Panel Starter-AVP Panel

• 10'-2", 12'-0", 14'-0", 16'-0", 20'-2" Lengths, 8 5/16" Girth.

Panel Starter

• 10'-2" Length, 3" Girth.

Sil/Head Sash

• DIM "A" 1 1/4", 10'-2" or 20'-2" Length, 7" Girth.
• DIM "A" 2 1/4", 10'-2" or 20'-2" Length, 9" Girth.

Window Sill Trim- Fixed Glass

• 10'-2" Length, 6" Girth.

Sill with Soffit

• DIM "A" 1 1/4",  DIM "B" 3 3/4", 10'-2"  Length, 9" Girth.
• DIM "A" 2 1/4",  DIM "B" 4 3/4", 10'-2"  Length, 11" Girth.

Box Sill with Soffit

• DIM "A" 1 1/4",  DIM "B" 3 3/4", 10'-2"  or 20'-2" Length, 11" Girth.
• DIM "A" 2 1/4",  DIM "B" 4 3/4", 10'-2"  or 20'-2" Length, 13" Girth.

FW-120 Panel Sill Trim

• 10'-2" or 20'-2" Length, 9 1/4" Girth.

Available Sizes

Standard Valley

• 10'-2" or 20'-2" Length, 26 Girth.

Extended Valley

• 10'-2" or 14'-0" Length, 41 1/2" Girth.

Valley Trim

• DIM "A" 1",  DIM "B" 11", 10'-2" or 20'-2" Length, 24" Girth.
• DIM "A" 2",  DIM "B" 11", 10'-2" or 20'-2"  Length, 26" Girth.
• DIM "A" 1",  DIM "B" 23", 10'-2" or 14'-0" Length, 48" Girth.
• DIM "A" 2",  DIM "B" 22", 10'-2" or 14'-0" Length, 48" Girth.

Valley Trim

• 10'-6" Length, 20 3/8" Girth, 29 Gauge.

Available Sizes

Splice Trim

• DIM "A" 1 1/8", 10'-2" Length, 8 3/8" Girth.
• DIM "A" 1 5/8", 10'-2" Length, 8 7/8" Girth.
• DIM "A" 1 3/4", 10'-2" Length, 9" Girth.
• DIM "A" 2", 10'-2" Length, 9 1/4" Girth.
• DIM "A" 2 1/8", 10'-2" Length, 9 3/8" Girth.

Alternate Splice Trim

• 10'-2" Length, 3 1/2" Girth.

FW-120 Panel Wall Splice Trim

• 10'-2" or 20'-2" Length, 7 3/4" Girth.

Available Sizes

Termination Trim

• DIM "A" 1", 10'-2" Length, 7 1/4" Girth.
• DIM "A" 1 1/2", 10'-2" Length, 7 3/4" Girth.
• DIM "A" 1 5/8", 10'-2" Length, 7 7/8" Girth.
• DIM "A" 2 1/2", 10'-2" Length, 8 3/4" Girth.
• DIM "A" 3", 10'-2" Length, 9 1/4" Girth.

Available Sizes

Inside Closure Angle

• 10'-2" Length, 3" Girth.

Outside Closure Angle

• 10'-2" Length, 3" Girth.

Zee Closure

• DIM "A" 1", 10'-2" Length, 3" Girth.
• DIM "A" 1 1/8", 10'-2" Length, 3 1/8" Girth.
• DIM "A" 1 3/4 ", 10'-2" Length, 3 3/4" Girth.
• DIM "A" 2", 10'-2" Length, 4" Girth.
• DIM "A" 2 1/8", 10'-2" Length, 4 1/8" Girth.

Zee Closure with Cleat

• DIM "A" 1 1/8", 10'-2" Length, 3 5/8" Girth.
• DIM "A" 1 3/4" , 10'-2" Length, 4 1/4" Girth.
• DIM "A" 2", 10'-2" Length, 4 1/2" Girth.
• DIM "A" 2 1/8", 10'-2" Length, 4 5/8" Girth.

Cee Closure

• DIM "A" 1 1/8", 10'-2" Length, 5 1/8" Girth.
• DIM "A" 1 3/4", 10'-2" Length, 5 3/4" Girth.
• DIM "A" 2", 10'-2" Length, 6" Girth.
• DIM "A" 2 1/8", 10'-2" Length, 6 1/8" Girth.

Cee Closure with Cleat

• DIM "A" 1 1/8", 10'-2" Length,  7 1/8" Girth.
• DIM "A" 1 3/4", 10'-2" Length, 7 3/4" Girth.
• DIM "A" 2", 10'-2" Length, 8" Girth.
• DIM "A"  2 1/8", 10'-2" Length, 8 1/8" Girth.

Available Sizes

Continuous Cleat

• 10'-2" Length, 3" Girth.

Offset Cleat

• 10'-2" Length, 3 1/2" Girth.

Parapet Rake Cleat

• 10'-2" Length, 2 1/2" Girth.
